Machine Shop Services

machines.built.to.order4

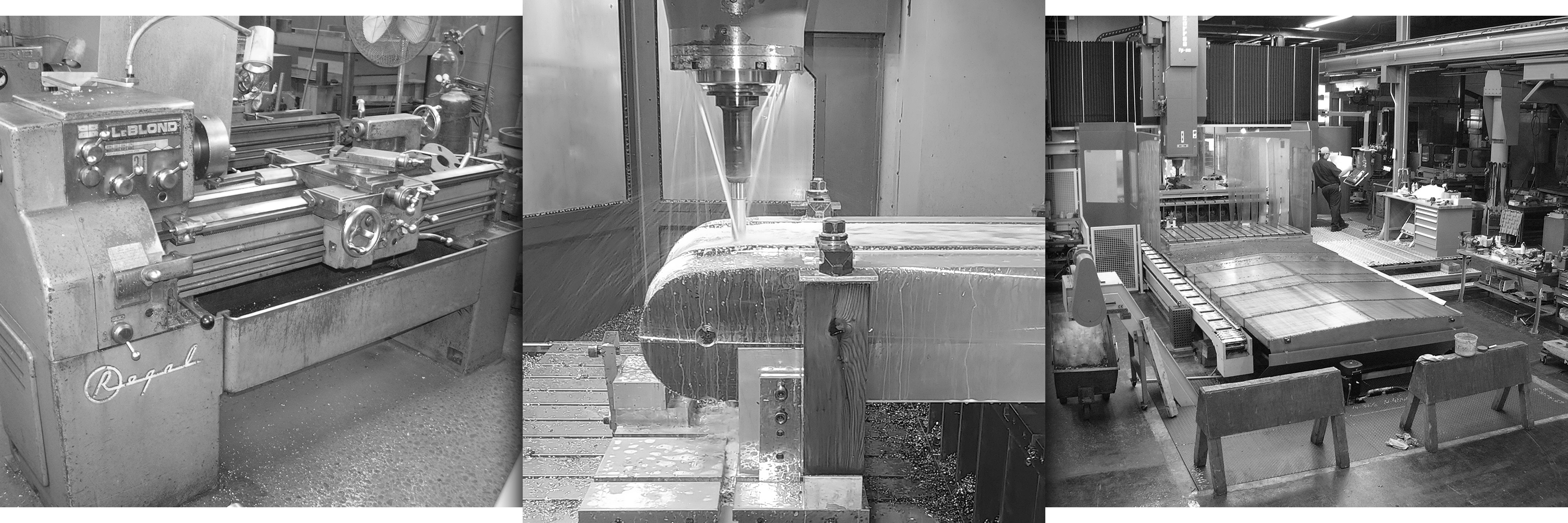

Charter Machine Company offers a full service machine shop. From the smallest to the largest in modern CNC machines. Charter Machine machining work is manufactured completely in house.

We offer a variety of custom work to help you with all your machining needs. Contact us to place an order.

Telephone

732-494-5350

FAX

732-494-4596

Postal address

55 Wester Ave. Metuchen N.J. 08840 U.S.A.

machines.built.to.order2

Machine Shop Capabilities And Equipment List

BORING MILLS (HORIZONTAL)

DeVlieg 43K 48" X 72" N.C.

DeVlieg 43H 54" X 72" N.C.

Kuraki KBT - 11DX - A 49" X 66" CNC 40 tools

DeVlieg 5K 84" X 144" N.C.

Union 150 BFK 80" X 120" CNC 80 tools

Toshiba Bridge Mill MPE 2650 CNC 90 Tools 103 wide x 236 x 53"

Nicolas Correa Bridge Mill FP 50/60 CNC 120 TOOLS 122 wide x 236 x 67"

Portage 5M-1034 60" x 80"

Wotan B-120M 51" x 71"

TOS W9A 44" x 49"

Machine Centers

Mori Seiki 45K CNC 24 tools Vertical

Mori Seiki MV 80 CNC 24 tools vertical

Mori Seiki Junior CNC 20 tools Vertical

Mori Seiki CNC 20 tools Vertical

Mori Seiki CNC SV-50 32 tools Vertical

(2) Hitachi Machining Centers 16 X 22 CNC 30 tools Vertical (Pallet Changer)

Kuraki KV-700 Vertical CNC 24 Tools

Cincinnati 5V-1000 20" x 40" Vertical NC

Cincinnati #3 40" x 100" Horizontal CNC

CYNDRICAL GRINDERS

WMW 120" centers

Toss 100" centers

Toss 40" centers

Heald Internal Grinder

TOS BU-28 25" centers

B&S 30" centers

LATHES MANUAL

LeBlonde 25/50 Heavy Duty Sliding Bed Gap

64" swing over gap

39" swing over ways

28" swing over compound

19' max between centers

LeBlonde 16/32 Heavy Duty Sliding Bed Gap

46" swing over gap

20.5" swing over ways

13" swing over compound

10' max between centers

28" X 80"

28" X 160"

22" X 80"

15" X 48" (2)

22" X 120"

16" x 60"

20" x 80" With Mimik Tracer

20" x 54"

16" x 48"

15" x 50" (5)

11" x 30"

CNC LATHES

Daewoo Puma 12L-B 12" chuck 38" centers

Haas SL20 with barfeed 2 1/2 dia. capacity

Hess 12" chuck 60" centers

Wasino 10" chuck 40" centers Live tools

Toyoda 12" chuck 80" centers

Traub TND 400 10" chuck 35"

15" x 50" (5)

11" x 30"

LATHES - CNC / MANUAL

Harrison Alpha 550 20" x 80"

Bridgeport EZpath S 17" x 40"

machines.built.to.order5

METAL FABRICATING EQUIPMENT

Verson Press Brake 1/4" x 96"

Niagra Shear 1/4" x 72"

Miller Heliarc Welders (2)

75 KVA Spot Welder

Airco 400 Amp Welder

Lincoln 250 Amp Welder

Esab Plasma cutter

Marvel Cuttoff Saw (2) (1 automatic)

Band Saw (2)

300 TON Press (platten size 40" x 60")

Hosfield Bender

Arbor Presses (3)

MISCELLANEOUS

Sunnen Hone (2)

Radial Drill (3)

Morrison Keyseater (2)

Bridgeports (14)

Milling Machine (Horizontal) (4)

Fork Lift - Capacity 6000 lbs. (2)

Fork Lift - Capacity 8000 lbs. (2)

Pallet Lift - capacity 8000 lbs.

Pallet Lift - capacity 12000 lbs.

Ford F700 18' long box truck

Freightliner FL80 Tandem Axle 58,000 gvw 26' Bed Truck

Brown & Sharp CMM 18 X 20 X 16 Measuring

Full Time Inspector

Miscellaneous Testing & Inspection Equipment

Miscellaneous Supporting Equipment

Schenk Dynamic Balancer

Eitel 40 ton Press (stroke control straightening)

Electrical to Code

Rebuilding

Paint Booth

Autocad 2002

Engineering Department

Fully Equiped Assembly Dept. - New building opened 10/95.
